| Lubricant | Specifications | Remarks |

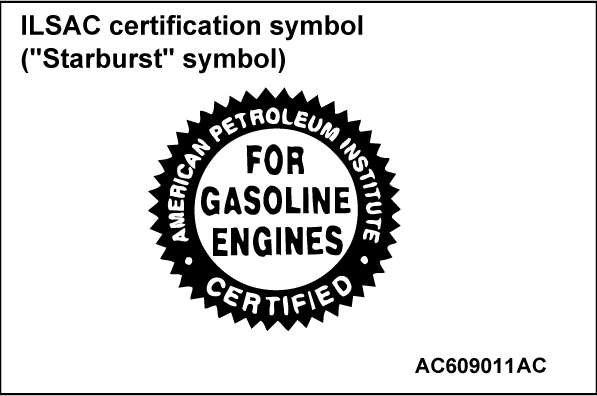

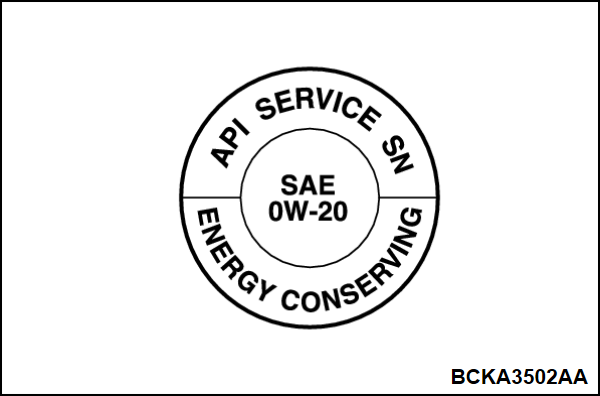

| Engine oil | Engine oils displaying ILSAC certification symbol ("Starburst" symbol) or conforming to the API classification SN. | For further details, refer to "LUBRICANTS SELECTION" section . |
| Engine coolant | Dia queen super long life coolant premium or equivalent* | *similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid organic acid technology. |
| Clutch fluid | Conforming to Brake fluid DOT 3 or DOT 4 | - |
| Transaxle oil | DIA QUEEN NEW MULTI GEAR OIL API classification GL-3, SAE 75W-80 | - |
| Transmission (CVT) fluid | DIA QUEEN CVTF-J1 | - |
| Transfer oil | Hypoid gear oil API classification GL-5, SAE 80 | - |
| Rear differential gear oil | Hypoid gear oil API classification GL-5, SAE 80 | - |
| Driveshaft (inside of knuckle bore) grease | Dowcorning/Molykote BR2 Plus | - |
| Driveshaft (PTJ boot, EBJ boot) grease | Repair kit grease | - |
| Brakes fluid | Conforming to Brake fluid DOT 3 or DOT 4 | - |
| Door hinges, back door hinges lubricant | Engine oil | - |
| Wiper motor link rod grease | Multipurpose grease SAE J310, NLGI No.1(mineral oil + Li) | - |
| Air conditioning compressor refrigerant unit oil | SUN PAG 56 | - |
| Description | Specification | |||
| Engine oil dm3 (qt) | Oil pan (excluding oil filter) | 4.0 (4.23) | ||
| Oil filter | 0.3 (0.32) | |||
| Engine coolant dm3 (qt) | Includes reserve tank | 7.5 (7.9) | ||
| Reserve tank | 0.65 (0.69) | |||
| Fuel tank dm3 (gal) | FWD | 63 (16.6) | ||
| AWD | 60 (15.8) | |||
| Clutch fluid | As required | |||
| Transaxle oil dm3 (qt) | 2.5 (2.6) | |||
| Transmission (CVT) fluid dm3 (qt) | 7.1 (7.5) | |||
| Transfer oil dm3 (qt) | 0.49 (0.52) <The number of the transfer mounting bolts: 6> | |||
| 0.47 (0.50) <The number of the transfer mounting bolts: 5> | ||||
| Rear differential gear oil dm3 (qt) | 0.5 (0.53) | |||
| Driveshaft (inside of knuckle bore) grease g (oz) | As required [1.0 - 1.5 (0.04 - 0.05)] | |||
| Driveshaft (PTJ boot, EBJ boot) grease g (oz) | PTJ boot grease | FWD-M/T | LH | 210 ± 10 (7.4 ± 0.3) |
| RH | 185 ± 10 (6.5 ± 0.3) | |||
| FWD-CVT | LH | 210 ± 10 (7.4 ± 0.3) | ||
| RH | 210 ± 10 (7.4 ± 0.3) | |||
| AWD-CVT | LH | 200 ± 10 (7.1 ± 0.3) | ||
| RH | 210 ± 10 (7.4 ± 0.3) | |||
| EBJ boot grease | 120 ± 10 (4.2 ± 0.3) | |||
| Brakes fluid dm3 (qt) | As required | |||
| Wiper motor link rod grease g (oz) | As required | |||
| Air conditioning compressor refrigerant unit oil dm3 (qt) | Compressor refrigerant unit | 70 - 90 (2.4 - 3.0) | ||
| Each connection of refrigerant line | As required | |||
)
| caution | Never use nondetergent or straight mineral oil. |
)
)
