SUBJECT: POWER SEAT ADJUSTMENT CABLE

No: TSB-05-52A-002

DATE: November, 2005

MODEL: See below

CIRCULATE TO:

[ ] GENERAL MANAGER

[X] PARTS MANAGER

[X] TECHNICIAN

[X] SERVICE ADVISOR

[X] SERVICE MANAGER

[X] WARRANTY PROCESSOR

[ ] SALES MANAGER

PURPOSE

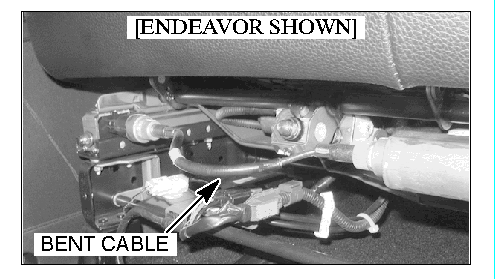

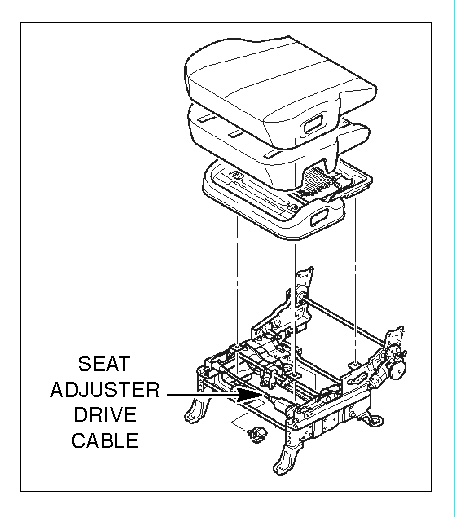

If the driver's power seat adjustment does not operate properly, inspect the drive cable. If the drive cable is damaged (bent or broken), replace it with the new cable listed in the PARTS INFORMATION section of this bulletin. Do not replace the seat assembly. Warranty claims for seat assembly replacement for a damaged drive cable will be charged back. Follow the instructions in this bulletin for replacing the seat adjuster drive cable.

AFFECTED VEHICLES
2004-on Endeavor and Galant models equipped with power seats
2006-on Eclipse models equipped with power seats

PROCEDURE

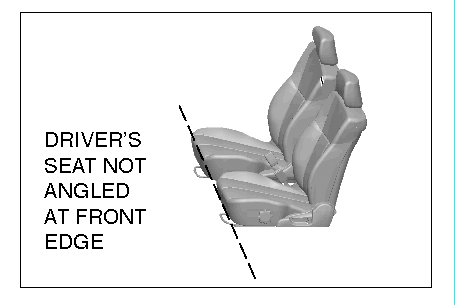

1.Before removing the drive cable, make sure that the driver's seat is properly aligned, not angled to one side. The edge of the seat should be in a straight line when viewed from the side. If necessary, use the power seat switch to move the seat into correct alignment.

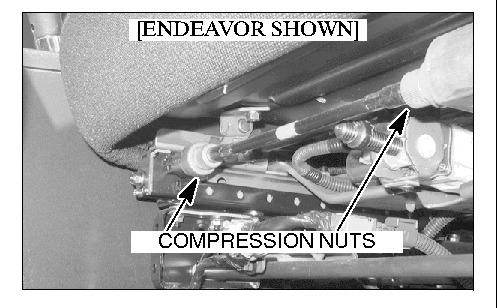

2.Remove the damaged seat adjuster drive cable as follows: a.Use channel lock pliers to loosen the compression nuts on both ends of the drive cable. b.Remove the damaged drive cable from the vehicle.

3.Install the new seat adjuster drive cable as follows:

a.Insert the new cable into the motor. Then slightly bend the cable and insert the other side.
NOTE: If the cable does not install easily, simply tap the power seat switch (at the side of the seat) once to align the cable end.

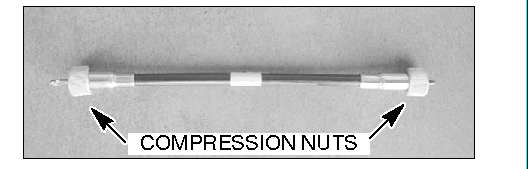

b.Slide the compression nuts to the outer sides of the cable and hand tighten. Then use channel lock pliers to tighten the compression nuts 1/4 turn. 4.Use the power seat switch to confirm proper seat operation.

PARTS INFORMATION
Use the appropriate Genuine Mitsubishi Part listed below:

Description

Part Number

Seat Adjuster Cable

6922A002

WARRANTY INFORMATION

Power Seat Drive Cable Replacement

Nature Code: 91D

Cause Code: 160

Labor Operation No. 52110095

Time Allowance: 0.2 hr.

Warranty Coverage: 36 months / 36,000 miles on vehicles purchased before 7/1/04. 60 months / 60,000 miles on vehicles purchased 7/1/04 and later.

Special Warranty Information: Normal warranty procedures apply.

Mitsubishi Motors North America, Inc.
